Electrical Insulation Material non Alkali Non Waxy Fiber Glass Tape

Quick Details

Place of Origin: China (Mainland)                Brand Name: XINCHENG

Application: Electrical or heat resistance           Product name: non alkali fiber glass tape

Model Number: non-alkali fiberglass tape          Type: Insulation Tape

Material: Fiberglass                                               Use: High Temperature Electrical insulation

Temperature Resistance: Class H-180℃            Rated Voltage: High Voltage

Tensile Strength: very strong                                color: white

form: in roll                                                              Standard: GB/IEC/ANSI

Certification: ISO9001,ISO14001,UL

Electrical Insulation Material non Alkali Non Waxy Fiber Glass Tape Introduction:

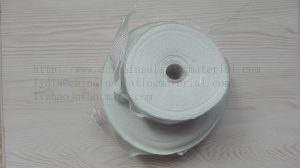

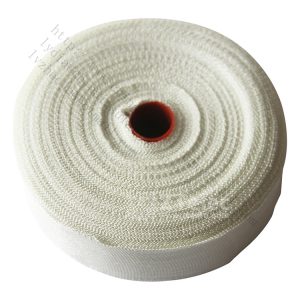

Non alkali Fiberglass tapes for winding motors, transformer

Non alkali Fiberglass tapes for winding motors, transformer is made of the non-alkali glass fiber yarns. The main component is E-glass, oxidation potassium, oxidation sodium, of which the content of oxidation of alkli metals is no more than 0.5%.

Characteristics for   Non alkali Fiberglass tapes for winding motors, transformer

This product has good thermal resistance, excellent insulating, corrosion resistance.

Application for  Non alkali Fiberglass tapes for winding motors, transformer

It can be used as wrapping and banding material for transformers, electric motors and cables.

Specification for  Non alkali Fiberglass tapes for winding motors, transformer

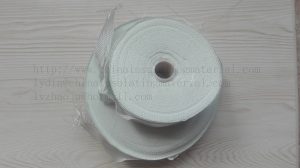

It is made of E-glass yarn and has good electrical and mechanical properties. It is used as insulating material inelectric motor, dry-type transformers, cables, etc. We could supply the tape with location line, and various ID/OD could be available according to customers’ need.

1.Features and properties

High temperature resistance

Good insulation

fiber glass tape is pliable and tacky. Its web structure provides easy unwind without glass strands separation an overlapping.The product contributes the characteristics of high tensile strength, high resistance to shocks, high modulus of elasticity, dimensional stability as well as no magnetically confining and eddy currents losses.



2.Specifications:

Thickness:0.06mm;0.1mm;0.13mm;0.15mm;0.2mm;0.25mm etc.

Width:10mm;15mm;20mm;25mm;30mm;50mmmm;……..100mm;150mm;etc.

Length:30m,50m,100m,200m

Package:5 rolls or 10 rolls per heat shrinkable film.



product tape Normal Thickness Nomal width Density (end/cm) Breaking strength Length(m/roll) Texture
Warp Zonal
tolerance tolerance tolerance tolerance
ET0625 0.06 ±0.01 25 ±1.5 27 ±2 22 ±2 130 100 plain weave
ET(s)1025 0.1 ±0.02 25 ±1.5 27 ±2 15 ±1 200 50
-0.01
ET(s)1320 0.13 0.03 20 ±1 24 ±2 12 ±1 250 50
-0.01
ET(s)1720 0.17 0.03 20 ±1 22 ±2 14 ±1 300 50
-0.02
ET(s)2050 0.2 0.03 50 ±2 20 ±2 10 ±1 350 50
-0.02
ET(s)2538 0.25 0.02 38 ±2 20 ±2 10 ±1 550 50
-0.03
ET(s)3050 0.3 0.02 50 ±2 20 ±2 10 ±1 650 50
-0.03
ET(s)10100 0.4 0.02 100 ±3 20 ±2 10 ±1 850 30
-0.03



Electrical Insulation Material non Alkali Non Waxy Fiber Glass Tape

Packaging & Delivery

Packaging Details: Each roll is packed in a plastic bag with label and then in cartons and pallets,Special packing can be arranged as customer’s request.

Delivery Time: within 15 days after receiving the 30% deposit.

Our Services

1) High performance cost ratio with steady quality

2) OEM service and Prompt Delivery

3) The fast speed of reply your email and can make quotation sheet just for you.

4) Can provide free sample, only need you bear the sample fee.

5) Supply good after-sales service, we will follow-up the situation after using, if have problems,

we will find out the reason and deal with positively.



FAQ

1.What is the minimum ordering quantity ?

MOQ can be a small quantity even 10 kgs  to meet various needing .

2.Do you have stock for different thickness ?

Yes, We have 25 tons stock for common stock . Production time is very fast if one certain not in stock .

  1. Can we order mixed thickness for one order ?

Yes, We could match your ordering request even mixed different  thickness and colors .

4.Can you give me a discount price?

It is depending on the volume, the larger the volume is ,the more discount you can enjory.

  1. What are your design capabilities?

We have staff trained in AutoCAD and several design programs. We can work with many  different file formats, as well as develop designs based on sketches, drawings, blueprints and other formats.
