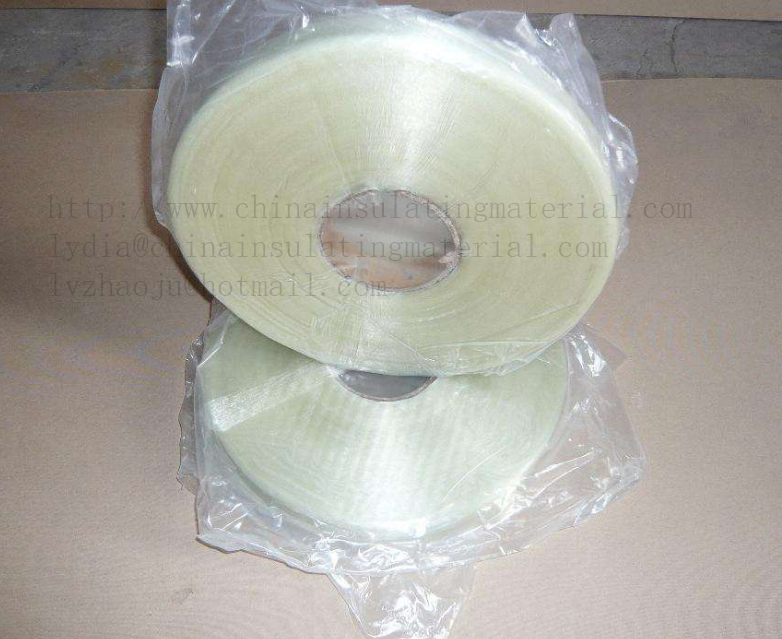

2830/2840/2841-W/2843-W/2850 impregnated fiberglass binding tapes

2830/2840/2841-W/2843-W/2850 impregnated fiberglass binding tapes

Quick Details
Original: China                                                                        Brand: XINCHENG
Type: fiberglass Insulation binding Tape
Material: Fiberglass yarn polyester Resin                         Application: High Temperature
Usage: banding materials for electric motors                  Type: Insulation Tape
Raw Material: Fiberglass yarn polyester Resin                Tensile Strength: 800N/cm
Thermal class:  B(133℃) / F(155℃) / H(188℃) as product     Rated Voltage: 0-20KV
Thickness: 0.17mm , 0.20mm ,0.30mm or customized
Width: 10mm ,15mm ,20mm ,25mm ,30mm ,50mm or customized
Packing: 100 or 200meters per roll or customized
Feature 1: High tensile strength, high resistance to shocks       Feature 2: High modulus of elasticity, dimensional stability
certification: UL, ROHS and ISO9001                        Production Standard: JB/T 6236.3-92
Description:
Polyester resin impregnated fiberglass banding tape is made of parallelly twisted Fiberglass yarns preimpregnated with a kind of   thermosetting epoxy resin. It is soft and sticky. Its web-shape structure is easily unwinded without glass strands separation and overlapping.
Class B(130 degrees C)
Class F (155 degrees C) insulating material,
Class H( 180 degrees C)



Model No. Name Temp
2830 Unsaturated polyester resin impregnated fiberglass binding tape B(130℃)
2840 Epoxy resin impregnated fiberglass binding tape F(155℃)
2841-W Modified polyester resin impregnated fiberglass web binding tape F(155℃)
2843-W Epoxy resin impregnated fiberglass web binding tape F(155℃)
2850 polyamine imide impregnated fiberglass binding tape H(80℃)

2830/2840/2841-W/2843-W/2850 impregnated fiberglass binding tapes

Model No. Name Temp

2830 Unsaturated polyester resin impregnated fiberglass binding tape B(130℃)
2840 Epoxy resin impregnated fiberglass binding tape F(155℃)
2841-W Modified polyester resin impregnated fiberglass web binding tape F(155℃)
2843-W Epoxy resin impregnated fiberglass web binding tape F(155℃)
2850 polyamine imide impregnated fiberglass binding tape H(80℃)
Specifications
impregnated fiberg lass binding tape consist of E-glass yarns preimpregnated with a special thermosetting polyamine imide resin
2850-epoxy resin impregnated fiberglass binding tape
2850 binding tape consists of meshy twisted E-glass yarns preimpregnated with a special thermosetting polyamine   imide resin, it is pliable and tacky, web structure provides easy unwind without glass trands separation and overlapping.
Characters:
  Strength and high modulus and shocks resistance,no magnetically confining and eddy current losses.
  As binding materials for electric motors,transformers and electric applicances.
High tensile strength, Absorb shocks, Good elasticity, Dimensional stability.
Applications:
   Widely used as ideal banding materials for electrical motors, transformers and lightning arresters. Used as banding materials for electrical motors, transformers , lightning arresters and mutual inductors.



Technical data:

MODEL DESCRIPTION THERMAL CLASS VOLATILE CONTENT RESIN CONTEN MAX. BANDING STRENGTH
2830 Unsaturated polyester resin impregnated fiberglass banding tape B ≤5% 27±2% 800N/cm
2840 Epoxy resin impregnated fiberglass banding tape F 800N/cm
2841-W Modified epoxy resin impregnated fiberglass banding tape F 800N/cm
2850 Polyamine-imide resin impregnated fiberglass banding tape H 800N/cm

2830/2840/2841-W/2843-W/2850 impregnated fiberglass binding tapes

Storage:

It should be stored in places under 30 degrees C.  If the ambient temp. is over 30 degrees C, it has to be stored in refrigerator.
Storage Temp.℃ <5 6-10 11-15 16-20 21-25 26-30
Storage period(Month) 12 8 6 4 3 2

FAQ

1. Q: Are you factory or trading company?
A: We are factory.
2. Q: Where is your factory located?
A: We are located in the TIANJIN city, near the BEIJING city , China.
3. Q: Can I get sample before making order?
A: We can send you free samples if you tell us the model and size you need, or you send us your drawing.
4. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.
5. Q: How long can I get a sample?
A: we have samples in stock, we can send it in one day.
6. Q: How do you inspect goods?
A: We have inspection department. All goods will be inspected before packing.
7. Q: What’s your payment term?
A: For small order, we suggest 100% before production to save time and bank charge. For bulk order, 30%TT deposit 70%TT before delivery.

2830/2840/2841-W/2843-W/2850 impregnated fiberglass binding tapes

Packaging & Delivery

Packaging Details: fiberglass binding tapes In carton and pallet/ According to customers’ requirement
Delivery Time: About 15 days.
