Transformer parts

Sand Casting/ Precision Loss Wax/ Brass CNC Machining Copper Machined parts

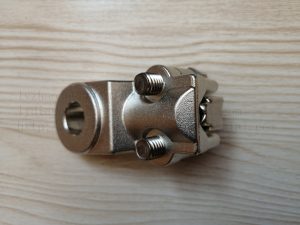

Product name: Transformer porcelain bushing terminal connector brass flag /Precision CNC Machining Brass Parts/Cast Copper Alloy Parts Material: bronze, brass, red copper, Copper,tin bronze, aluminum bronze, etc. Standard: DIN or Customer's Drawings Process: investment casting, lost wax casting, precision casting Application: transformer bushing Another Application: power, railway, hardware, bathroom accessory, electronic parts Surface treatment: sand blast, passivation, polishing, Electroplate,Power coating, painting, anodyze Certification: ISO9001 Service: OEM\ODM , moulding, casting, machining, heat treatment Dimensions: Customer's Drawings

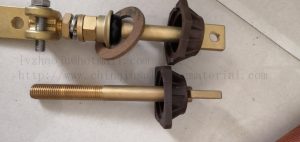

Full set porcelain bushing insulator transformer isolator bushing

Full set porcelain bushing insulator transformer isolator bushing

Full set porcelain bushing insulator transformer isolator bushing Supply Ability Supply Ability: 100 Ton/Tons per Month copper / brass / bronze / alloy casting & machining manufacturer Product Description 1.Material:Electrical porcelain 2.Applied Standard: IEC,AS,BS,AN 3. Product can be Customized Working condition and performance: Ambient temperature:-50°C~+50°C; Altitude: not higher than 1000m for common bushings and not higher than 2500m for the reinforced and antifouling bushings; The common type is suitable for lightly dirty place and the antifouling one for heavily dirty place; Assembling method: vertically and horizontally and easy to install; GB standard 1KV/300A-400A-600A 1KV/800A-1000A-1200A 1KV/1600A-2000A-3150A 1KV/4000A-5000A-6000A 10KV/50A-275A 20KV/50A-275A 20KV/50A-600A 10KV/300A-400A-600A 20KV/300A-400A-600A 20KV/300A-400A-600A 20KV/300A-400A-600A 10KV/800A-1000A-1200A-2000A DIN standard 1KV/250A-630A 3KV/250A-630A 1KV/1000A-2000A-3150A 3KV/1000A-2000A-3150A 3KV/6500A 12KV-24KV-36KV/250A 12KV-24KV-36KV/630A 12KV-24KV-36KV/1000A-2000A-3150A

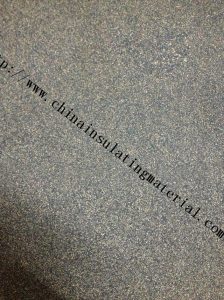

Transformer cork rubber gaskets & Vibration control pads

Transformer cork rubber gaskets & Vibration control pads

Description: With NBR or neoprene, it resists oil, good material as gasket, light and good compressed It made from cork granule with NBR or neoprene, have good compressed cacacity, light weight and good chemical capacity. Cork in electrical industry special cork and rubber had been developed to prevent leakage of the very searching cooling fluids used in modern electrical transformer, similar material are also widely used in switch gear circuit breakers, lighting arresters, and other transmission equipment, as well as in conduit fittings, gear cases and cover plates in washing machines. Sealing material is compounded with Nitrite (NBR)rubber. This product is suitable for most transformer oils at application Specifications Rubberised Cork Sheets/Strips: Product is used in making Gaskets/Packings for sealing Transformer Rubberised Cork Sheets/Strips: Product is used in making Gaskets/Packings for sealing Transformer tanks against Transformer Oil. It is having wide application in manufacturing of Power & Distribution Transformers. We can supply sheets in required thickness from 2.0mm - 12.0mm with sheet size 1000mmX1000mm and 900mmX2000mm. We can supply material in Strips in required thickness & width in 20 Mtrs. roll form. We can also supply the Gaskets/Components as per customer design. A material having high hardness manufactured from fine Imported Cork Granules providing excellent oil, heat and ozone resistant properties. Its excellent Compression Set and Side-Flow properties control lateral spread tendency of ordinary Cork Sheets and is therefore, best suited for Outdoor Transformers.

copper soft connection, conductive tape, copper braided line, copper conductor

copper soft connection, conductive tape, copper braided line, copper conductor

copper soft connection, conduc...

copper flexible busbar soft Connectors For Electrical Transformers Parts

copper flexible busbar soft Connectors For Electrical Transformers Parts

copper flexible busbar soft Co...

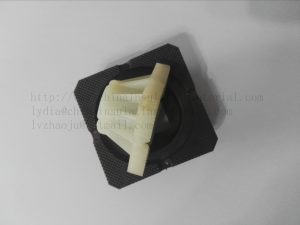

Nylon cap and Nylon injection molding parts for transformer

Nylon cap and Nylon injection molding parts for transformer

Nylon cap and Nylon injection ...

Electrical Insulation Oil Duct Milling Spacers for Transformer

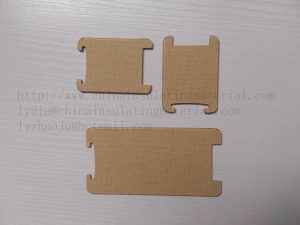

Electrical Insulation Paper Spacers for Transformer

Electrical Insulation Paper Spacers for Transformer

Transformer Corrugated Wall Panels, Corrugated Tank Fin, Corrugated Fin Wall

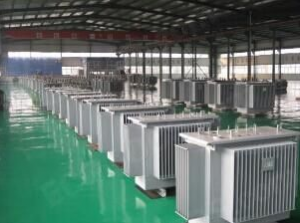

TRANSFORMER RADIATORS & FIN WALL CORRUGATED TANK

Specifications Place of Origin...

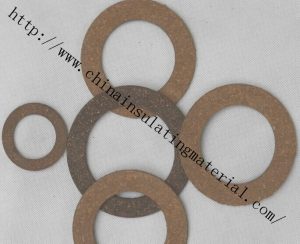

Transformer Cork Gasket Sheet

Sealing material is compounded...

Cork Gasket for transformer

Sealing material is compounded...
