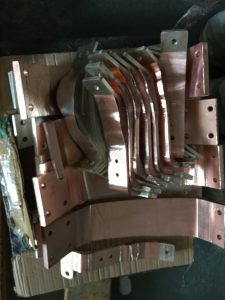

Highly Flexible Copper Foil Soft Connectors For Electrical Transformers Parts

Flexible tinned copper connectors Electrical Busbar Connectors

Flexible tinned copper connectors Electrical Busbar Connectors Quick Details

Place of Origin: China (Mainland)                       Brand Name: XINCHENG

Product name: Series specification soft electrical copper busbar connectors

Material: T2 Copper                                  Usage: CONNECTION

Copper strips: ≥99.9%Cu                               Extensibility: ≥30%

use: Copper Foil Soft Connectors For Electrical Transformers Parts

type: copper flexible busbar                             Current: Up to 5,000 A

Copper Foils Thickness: 0.1mm to 1.0mm or customized      Width: 10mm to 150mm or customized

Length: up to 2000mm or customer’s request               Shape: square or Tape Strip Coil Roll

Application: Industrial, Electric power industry spaceflight & aviation , auto-equipment and etc.

Model: copper busbar                                  Sample: free

conductivity: > 100 IACS                                Tensile strength : Rm; 200N/ cm ²

Elongation: after break, > 35%                           Resistivity: 0.01724Ω / mm ² at 20 ℃

Item: Laminated Copper Connector                       Surface: Bare or Plating

Certification: SGS; ROHS; ISO9001                        Plating Optional:Nickel Plating,Silver Plating,Tin Plating

Alloy Or Not: Non-alloy                                 Processing: Cold press

Temperature: high temperature Resistance                 Hole Shape:Round Hole, Oval-shaped , thread or Others

Insulation: PVC Dipping Coated, PTE or PE heat shrink tube,Epoxy Coated

Edge Shape:Full Round Edge, Semicircle, Square Corner      Thickness: up to 32mm or customize

HS Code: 8536909000

Flexible Connection Busbar Product Description

Distribution power supply device is the main power supply circuit (copper row aluminum row called busbar), each branch line (row) by busbar on lead. Busbar is refers to the power supply system, electric cabinet in the total system switch and the shunt circuit switch the connection of copper row or aluminum row. Surface of insulation processing. Main function is to do for conductor.

The process assures minimum resistance and helps in increasing products’s service life as well as bringing a reduction in downtime. Further, these also come with superior mechanical & electrical properties at high temperatures.

Surface Insulation Sleeves can be made three main materials, heat shrink sleeves,pvc dipping sleeves and pvc epoxy coated, you can choose the one you like best. or you can use bare copper foils without any plating or insulation protection.

Surface insulated dipping covers are flame retardancy with UL94v-0 standard and it bears high voltage and large currents to pass.

Heat shrink Sleeves Insulation Advantage:

1) Light weight

2) Different choice :2:1. 3:1 with glue, 4:1 to meet different voltage and current

3)  Low Cost, Easy to install

4)  Suitable for common, simple bening busbars to keep good insulation and fire resistance

Surface insulation covers are made of PVC Dipping Covers, It have High Voltage and High Current resistance.smooth, shining & beautiful design will make busbars more attractive.

Material: high quality of copper foil



Item soft electrical copper busbar connectors
Shape: square or Tape Strip Coil Roll
Material: T2 Copper
Feature Smooth finish, Durability, Flexible
Resistivity: 0.01724Ω / mm ² at 20 ℃
Electrical conductivity ≥4-6A/mm2
Length  made as customer’s request
Width  Width: 10mm to 120mm or customized



Flexible tinned copper connectors Electrical Busbar Connectors Application:

Because ofthe excellent characteristic of insulated flexible busbar,it has become the first choice for electrical wiring and gradually replace the cable in the application of electrical wiring,the hard busbar of non main structure will gradually be replaced with flexible busbar.

1)New Energy Vehicles

2)Battery Packs;

3)Power Supply Room;

4)Power Distribution Equipments;

5)Switchboards;

6)Panel Boards;

7)Low and Medium Voltage Switchgear;

8) Electric Bus, High Speed Train,

9)High Current & Control Equipment;

10)Busway Systems etc.

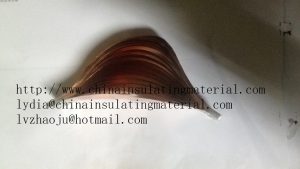

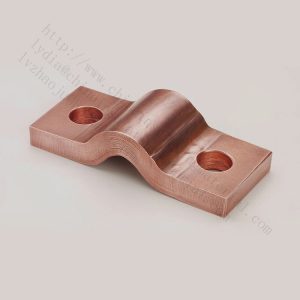

Laminated Copper Flexibles

Laminated and Flexible Copper are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material.

The process assures minimum resistance and helps in increasing product’s service life as well as bringing a reduction in downtime. Further, these also come with superior mechanical & electrical properties at high temperatures.

Laminated Copper Flexibles

Laminated and Flexible Copper are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material.

The process assures minimum resistance and helps in increasing product’s service life as well as bringing a reduction in downtime. Further, these also come with superior mechanical & electrical properties at high temperatures.

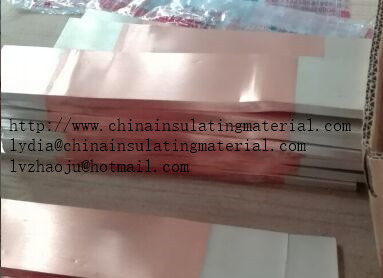

Copper flexible busbar soft Connectors For Electrical Transformers Parts

Copper flexible busbar soft Connectors For Electrical Transformers Parts

Copper Flexibles Link

Flexible Link Copper delivers maximum conductivity and minimum voltage drop without any loss of flexibility in a braid. Designed as the flexible link, these find used in spot welding machines as well as provide clients with necessary Insulation on flexible as per their specific requirements. These are also stringently tested on defined parameters before being supplied to the customers. Further, we can also offer customized solutions as demanded by the customers.

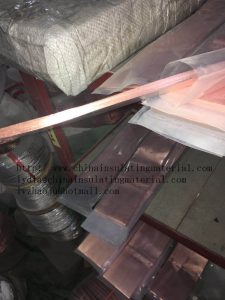

Copper flexible busbar soft Connectors For Electrical Transformers Parts

Copper flexible busbar soft Connectors For Electrical Transformers Parts

Conductor:

Insulated flexible busbar conductor use T2 soft state copper belt, the soft state can devide to bare copper and tin plated copper

Insulation layer:

Flexible insulating busbar of insulating layer has specialpolyvinyl chloride (PVC) and thermoplastic elastomer (TPE) of two kinds of materials. The characteristics of TPE with low smoke and no halogen.



Production standards:

Flexible insulating busbar don’t have a special standardin the world, The United States borrow UL758 electronic line standards for production certification,China’s enterprises refer to GB/T5023 insulation cable standard and UL758 electronic line standard.



Technology:

Adopt pressure welding, brazing, butt-welding and other mature technologies manufacturing.





Advantages: The products have good flexibility,heat dissipation,resistance to bending, strong conductivity, convenient to install,in addition, the flattening terminal and bright overall ensure the beautiful outlook of the products.

  1. Excellent electrical conductivity.

Welding press many laminations improve electrical conductivity and add the transmission of current.

  1. High bonding strength.
  2. Available for bending, drilling, stamping etc.
  3. Pure T2 copper

5.Easy processing and forming

6.High load flow

7.Easy installation

  1. The T2 copper is unable to be broken after 150 times bending test.

The feature of flexible enable us to be made busbars in various types.



Packaging & Delivery

Packaging Details:

Inner packing : plastic bag /inner box

Outer Packing : export carton with pallets/ According to customers’ requirement

Delivery Time: About 7-15 days.



Our Services

  1. We are professional manufacturer, We are manufacturers of bus bar with automatic machines, professional development, production and inspection teams. OEM / ODMis welcome.
    2. We are factory has passed ISO9001 and ISO14001 system certification,and has established  IATF16949 quality management system.
    3. We are factory with competitive price and free sample.
    4. Enough stock to meet fast delivery.
    5. 2 year’s quality guarantee.
    6. Sale’s service team will solve problems after customer receive goods.
    7. Form E, C/O is available.

8.we also can provide the Copper Flexibles Braid, Laminated Copper Flexibles, Copper Flexibles Link, Copper Flexible Bus Bars, copper braid wire, copper flexible connector, laminated copper, ground copper rod, copper wire lug, etc.
