Polyester film/non-woven polyester F DMD

Quick Details

Place of Origin: China (Mainland)                           Brand Name: XINCHENG

Model Number: 6641 FMD                                Type: Insulation Film

Material: Polyester Film+non-woven fabric,

Polyester Film+non-woven fabric

polyester film/non-woven polyester F DMD 6641

Application: High Voltage                                 Rated Voltage: below 35kv

Tensile Strength: good                                    Insulation class: F (155°C)

Product name: polyester film/non-woven polyester f DMD 6641     Thickness: 0.10 – 0.90mm

width: 6mm-1600mm or Customized Size                       Test standard: IEC 60626

Color: White/blue/pink/Light Blue/Yellow, or Customized          Usage: Electrical insulation

OEM, ODM service: Available                                Sample: Free

Style: Roll, Strip, Sheet                                      Standard: IEC 60626

Certification: ROHS, UL,SGS, REACH,ISO





Product description of polyester film/non-woven polyester f DMD 6641

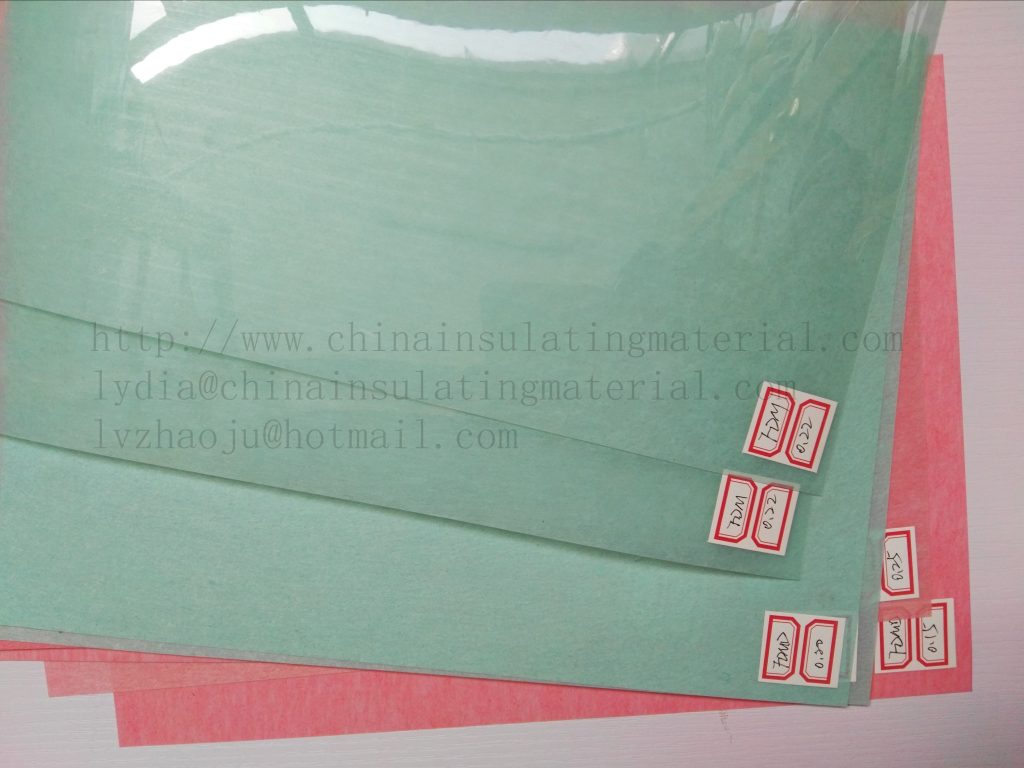

6641 F-DMD is a three-layer flexible composite material, produced by using F-class adhesive to adhere the two faces of high-melt-point polyester film (Mylar) with hot rolling non-woven polyester fabric (Dacron) .

6641 Polyester film/polyester fiber non-woven fabric flexible    composite material (F-DMD) is made from high melting point polyester film and hot-rolling polyester fiber non-woven fabric. The polyester film and polyester non-woven fabric are bonded by F-class adhesive.



Technical  data

Type



Dacron /
Polyester

Nominal Thickness



mm

Tolerance





±%

Nominal Grammage



g/㎡

PET Film Thickness



цm

Tensile Strength Not Bended

MD≥                TD≥       N/10mm           N/10mm

BDV Not Bended



KV≥

2-1-2 0.13(0.10) 15 115±13 25 70 70 5
2-2-2 0.15 15 145±17 50 110 90 7
2-3-2 0.18 15 190±22 75 140 105 8
2-4-2 0.20 15 220±26 100 160 120 10
2-5-2 0.23 15 260±31 125 200 150 11
2-7.5-2 0.30 15 350±42 190 300 200 16
2-10-2 0.35 15 425±51 250 350 300 19
2-14-2 0.45 10 560±67 350 400 350 23
3-3-3 0.23 20 230±27 75 140 105 8
3-4-3 0.25 20 265±31 100 180 120 10
3-5-3 0.28 20 300±36 125 220 150 11
3-7.5-3 0.34 20 390±46 190 270 200 16
3-10-3 0.40 20 480±57 250 300 300 19
3-14-3 0.50 20 620±74 350 340 300 23
Adhesive Property 180℃±2℃,10min No delamination, blister, or adhesive flow Temperature Index(T.I):  155℃



6641 Class F Polyester Film/Polyester Fiber non-woven Fabric composite(F-DMD) is made from one layer of high melting point film and two layers of hot rolling polyester fiber non-woven fabric. These three layers of flexible insulation are bonded by class F adhesive glue.

Extensively used as primary insulation for Class F applications in the electrical industry, in particular for motors and transformers as slot insulation, phase barrier and interturn insulation.
Technical parameter

Accurate specifications ensure that we provide professional products

Product Name Properties Value
F6641

Temp.: Class F (155°C)

Thickness(mm) 0.15 0.2 0.23 0.25 0.3 0.35 0.4
Tolerance(mm) ±0.020 ±0.020 ±0.020 ±0.030 ±0.030 ±0.040 ±0.040
Breakdown Voltage(kv) ≥6 ≥7 ≥9 ≥10 ≥12 ≥15 ≥18
Test method IEC-626
Colour Light Blue, Yellow
Special thicknesses or sizes on request,Products in rolls, sheets, tapes are available on request





Technical Data



NO.



Properties



Units



Values

1

Nominal thickness

mm 0.16 0.18 0.20 0.25 0.30 0.35 0.40
2

Thickness allowed tolerance

mm ±0.02 ±0.02 ±0.03 ±0.03 ±0.03 ±0.04 ±0.04
3

Nominal grammage

g/m2 140 190 220 260 350 425 500
4 Grammage allowed tolerance g/m2 ±20 ±28 ±33 ±39 ±52 ±63 ±75
5 Film nominal thickness um 50 75 100 125 190 250 300
6 Tensile strength(MD) N/10mm ≥80 ≥120 ≥140 ≥180 ≥270 ≥320 ≥340
7  Tensile strength(XD) N/10mm ≥80 ≥105 ≥120 ≥150 ≥200 ≥300 ≥320
8  Elongation(MD) % ≥15 ≥15 ≥15 ≥15 ≥5 ≥5 ≥3
9  Elongation(XD) % ≥20 ≥20 ≥20 ≥20 ≥5 ≥5 ≥2
10 Electric breakdown voltage KV ≥6 ≥7 ≥9 ≥10 ≥15 ≥18 ≥20
11 Bond strength at 155±2℃  No delamination, no blister, no adhesive flow



Tech. Specification:

electrical insulation Polyester film

electrical insulation Polyester film



Packaging & Delivery

Packaging Details:

rolls wrapped in protecting film into bags then carton or wooden case, outer pallets.

Delivery Detail:

within 10 days upon order confirmed.
