Description

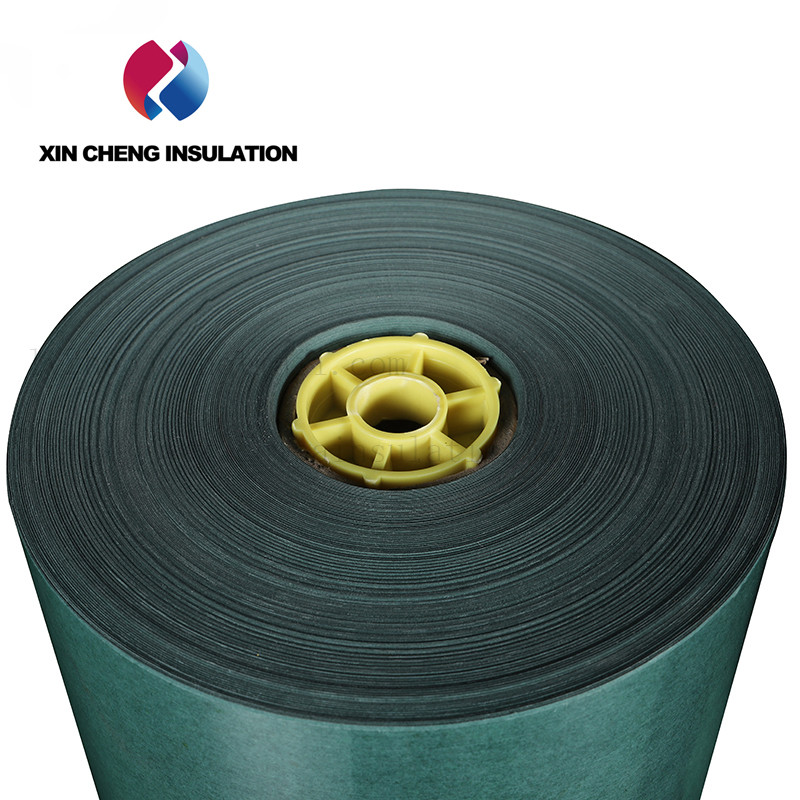

DMD FILM : Polyester film/polyester fiber non-woven fabric flexible composite material (F-DMD) is made from high melting point polyester film and hot-rolling polyester fiber non-woven fabric. The polyester film and polyester non-woven fabric are bonded by F-class adhesive.
Normal colours :green ,wight ,pink
Width :1000mm
Class B F
4、Main Technical Data
6641 F-DMD Polyester film/polyester non-woven fabric Flexible combined material
| NO. |
Technical Specification |
Unite |
Values |
| 1 |
Thickness |
mm |
0.15 |
0.18 |
0.20 |
0.23 |
0.25 |
0.30 |
0.35 |
0.40 |
0.45 |
| 2 |
Thickness Tolerance |
mm |
±0.02 |
±0.025 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.035 |
±0.040 |
±0.045 |
| 3 |
Nominal Grammage and tolerance |
g/ |
140±20 |
190±28 |
220±33 |
260±39 |
300±45 |
350±52 |
425±63 |
500±75 |
560±84 |
| 4 |
Thickness of polyester film |
mm |
0.05 |
0.075 |
0.10 |
0.125 |
0.15 |
0.19 |
0.25 |
0.30 |
0.35 |
| 5 |
Tensile Strength |
MD |
No Bending |
N/10
mm Width |
≥80 |
≥120 |
≥140 |
≥180 |
≥190 |
≥270 |
≥320 |
≥340 |
≥370 |
| After Bending |
≥80 |
≥105 |
≥120 |
≥150 |
≥170 |
≥200 |
≥300 |
|
|
|
