Excellent Performance Cork Gasket
Quick Details
Place of Origin: China (Mainland) Standard or Nonstandard: Nonstandard

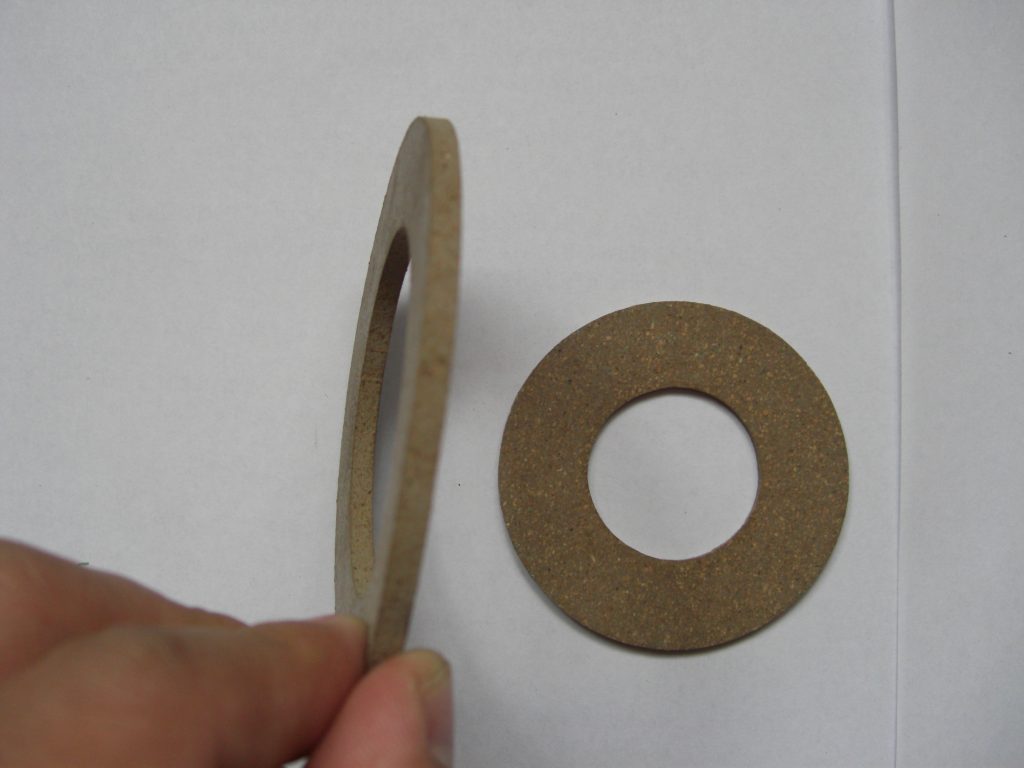

Shape: Ring Gasket ,Corrugated Gasket, All shapes available
Material: Cork& rubber, NBR, FPM, FVMQ, VMQ, EPDM
Thickness: 0.5mm – 75.0mm Durometer: 8~90 Shore A
Density: 0.75-2.05g/cm3 different kind Tensile Strength: ≥20Mpa
Compressibility: 10%-30% Compressed rebound rate: ≥80%
Color: brown (natural) & black, or Customers’ request Recovery, %:≥ 40
Working temperature: -60~350℃ Water content: 0.5%

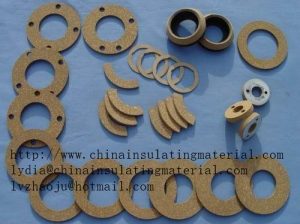

Special Function: Oil proof, acid, High temperature resistant etc
Volume change rate: 15 -10% Certificate: ISO9001:2008
Description:
With NBR or neoprene, it resists oil, good material as gasket, light and good compressed
It made from cork granule with NBR or neoprene, have good compressed cacacity, light weight and good chemical capacity.
Cork in electrical industry special cork and rubber had been developed to prevent leakage of the very searching cooling fluids used in modern electrical transformer, similar material are also widely used in switch gear circuit breakers, lighting arresters, and other transmission equipment, as well as in conduit fittings, gear cases and cover plates in washing machines.
Sealing material is compounded with Nitrite (NBR)rubber. This product is suitable for most transformer oils at application
Date sheet
| Serial
number |
Test project |
Index |
The test results |
| 1 | Hardness (Shore) | 80±10 | 82 |
| 2 | Tensile strong No less than (MPA0 | 2.5 | 5 |
|
3 |
Permanent compression deformation
Compression ratio25% 70℃×22h Not more than % |
55 |
38 |
|
4 |
Aging in hot air (100℃×70h) The hardness change
Weight change % |
0~+10 -10~0 |
4 -2.8 |
|
5 |
water-tolerant (100℃×1h )
Volume change % |
-10~+15 |
1.8 |
|
6 |
Resistance to 1# standard oil( 70℃×22h) The hardness change
Volume change % |
-10~+10 0~+10 |
2 3.2 |
|
7 |
Volatile oil standard B (23℃×24h)
The hardness change Volume change % |
20~0 0~60 |
-10 30 |
| 8 | Temperature index | -20℃to 120℃ |
Excellent Performance
Specifications
Gaskets of various engines of automobiles, tractors, plans, ships, and pipes petroleum, transformers, electric equipment,etc.
It is made from clean granulated cork mixed with resin binder and synthetic rubber polymer.
Mark: CKRBS: Cork mixed with NBR
CKRS: Cork mixed with resin binder
Technical data:
| Item | Unit | Ref No. CKRBS | Ref No. CKRS |
| Density | kg/m3 | >270 | >24 |
| Tensile Strength | Mpa | >0.55 | >0.4 |
| Compressibility | % | 15-40 | 15-40 |
| Recovery | % | >75% | >75% |
| Flexibility | % | <12 | <12 |
| Resistance to boiling water, 3hours | – | NO DISINTEGRATION | – |
| Resistance to boiling Hydrochloric acid, 0.5hous | – | NO DISINTEGRATION | – |
| Resistance to hot oil, 3hours | – | NO DISINTEGRATION | – |
| Moisture content | % | <8 | <8 |
| Dimension of sheet | mm | (0.8-100)THK X 610 W. X 915 L. | |
Packaging & Delivery
Packaging Details: Packed by film firstly then by carton or wooden case or as customer request
Delivery Time: within 7 days after received payment
Our Advantage:
OEM service—We are a company specializing in making OEM mechanical parts in rubber & plastic & metal material, and we produce according to your samples or drawings ,if they are not available, we design according to your requirements and the application.
Various existing molds—We have our own mould factory, and after more than 30 years of continued accumulation, there is a very large amount of moulds , so that we may save the mould cost for you.
Authentications—Our products have passed related authentications ,and are widely approved ,adopted and favored by domestic and foreign enterprises.
Worldwide selling network —With export experience of 15 years, we have established a worldwide selling network, and we are committed to provide more accurate , professional and thoughtful service.
